Technical Parameters

 Model: MB-250T

 Total power: 380/220V, 60KW, 3PH

 External gas source: 4-6kgf/cm²

 Main motor: 380V 3300W

 Exit belt motor: 380V 750W

 Film feeding electricity motor: 3.3W

 Machine size (L x W x H): 12500x1500x2450mm

 Package piece speed: 25 packs /minute

 Package product size: according to client special requirement.

 Working platform height: 1050-1100mm (according to special requirement).

 Usage film type: PE film

 PE film width: according to client requirement, film thickness: 0.07mm-0.13mm

 Film shrinkage ratio: length wise direction 70-80%, cross wise 20-30%

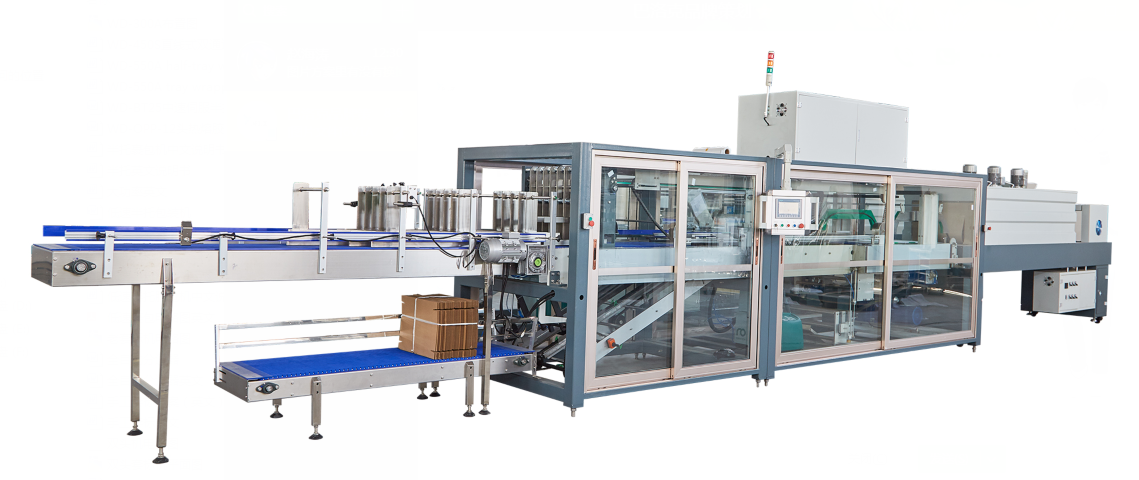

Machine description

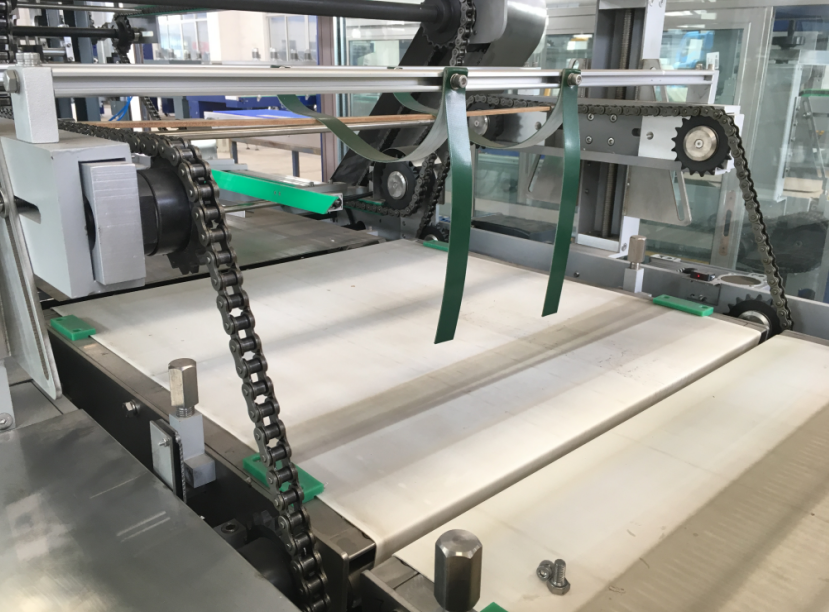

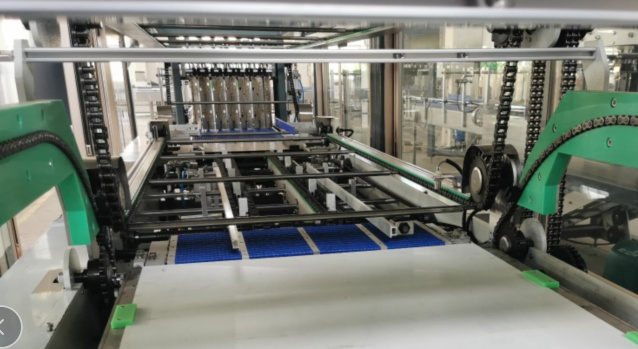

 Bottle entry plate chain guiding direction

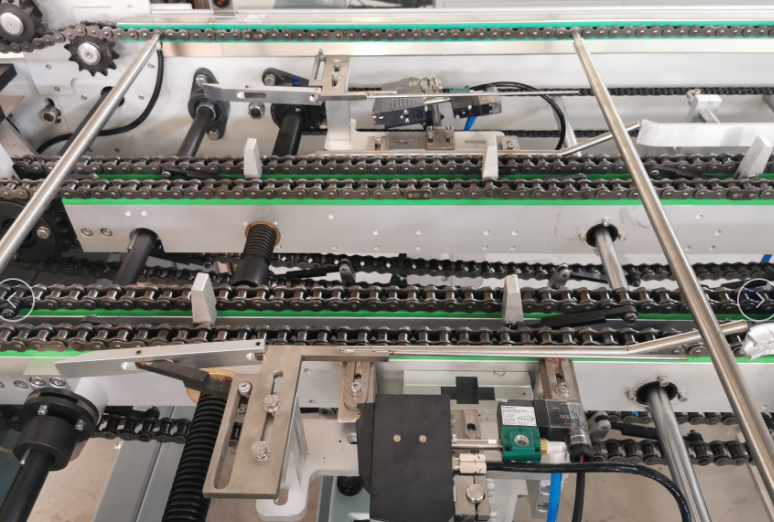

1. Loose left and right guiding direction inside screw, let left and right direction move to corresponding location.

2. Left and right guiding direction inside width small than about bottle combination 10mm

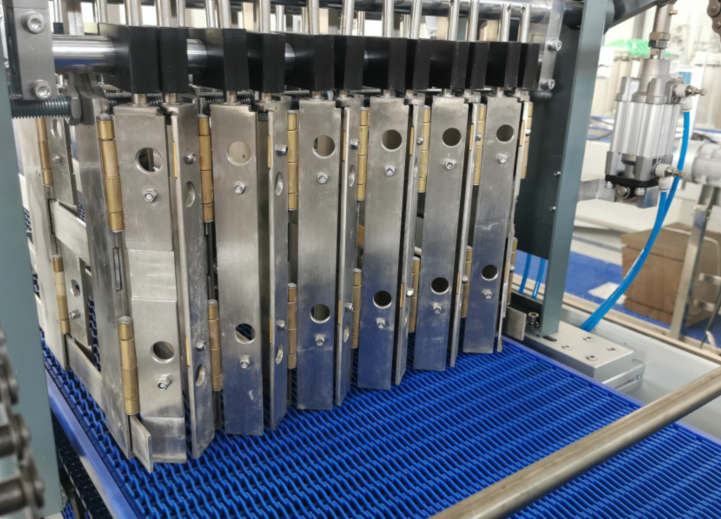

 Bottle sorting blocking board width adjustment

1. Use spanner rotate while range blocking board adjust screw pole, let distance adjust to corresponding location

2. Bottle separation board distance: bottle max place diameter is +2-3mm, let bottle separate tunnel aligning

3. Record number the number show on displayer, convenient to next time adjust

 Cardboard loading system

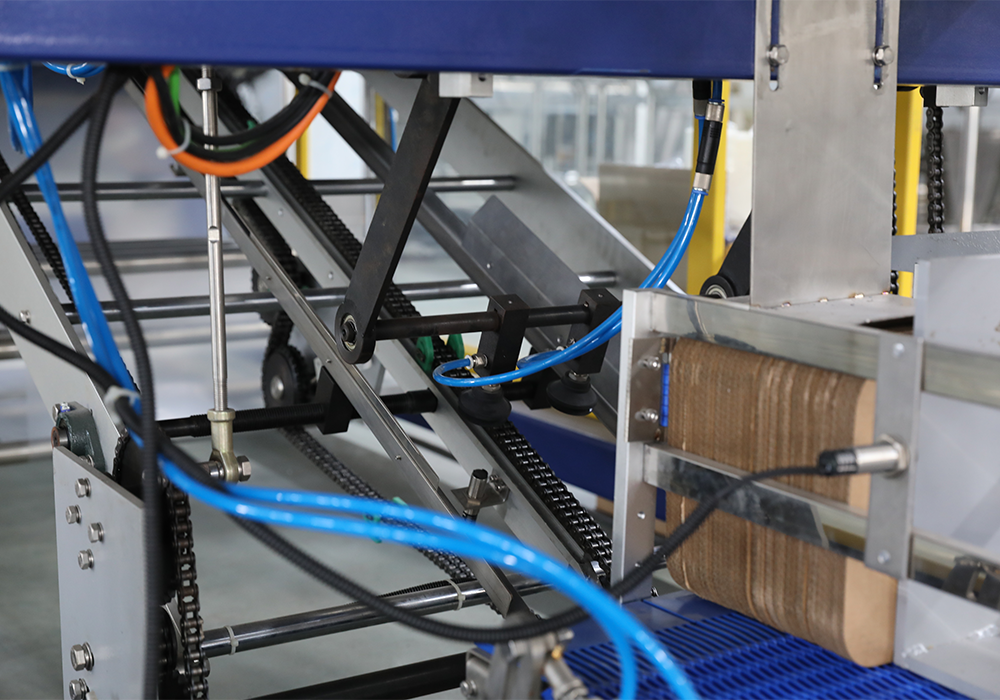

 Half tray folding

 Sorting film + Hot glue machine

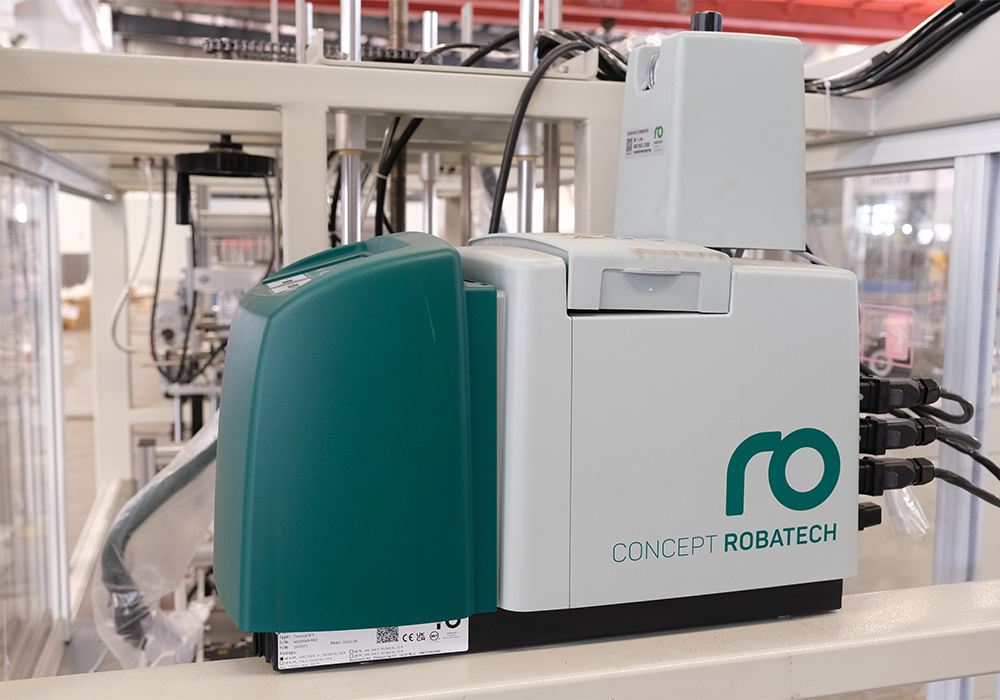

 Hotmelt Gluing system by Robatech, Switzerland

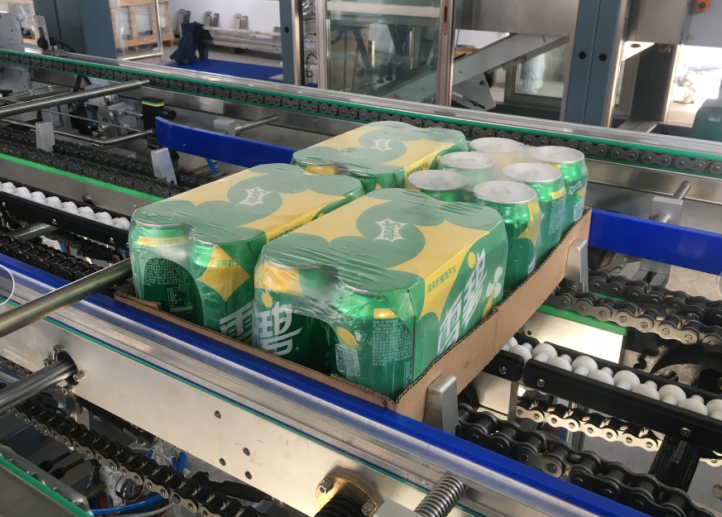

 Finished product photos

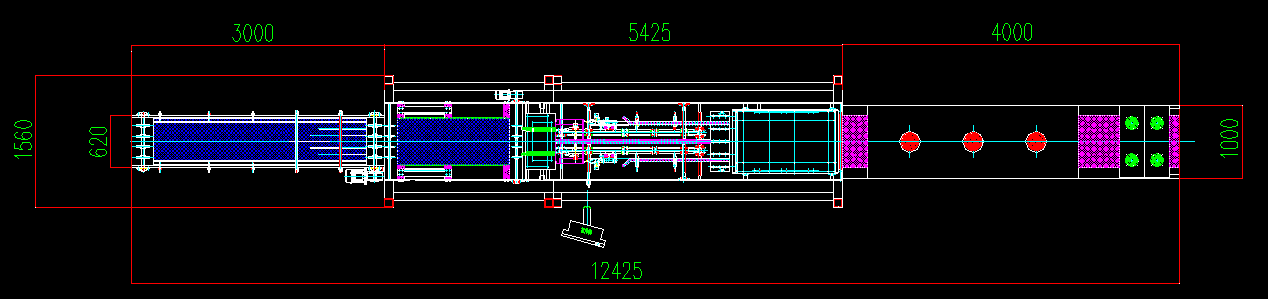

Dimension Drawing

Features

l Whole machine all set safe protection device.

l Bottle hander film wrapping: via bottle handing pole control each group bottle movement distance, let it synchronization with film lifting pole, and let bottle push to film wrapping section belt; film lifting pole and film lifting device match torsion limit stopper, while bottle drop or bottle block, limit stopper movement let machine auto stop, after failure solve, then turn limit stopper hand wheel reset.

l Mechanism rotation: the machine rotation drove by servo motor, adopt to synchronous belt and chain rotation assembly method, ensure rotation harmony, the place that adopt to chain ration all add protection covet and lubricate device, ensure worker safe and circumstance clean.

l Have the function: while lack bottle, the machine will alarm, no bottle no film feeding function.

l Controlling system: adopt to Inovance PLC and touch screen controlling, have manual. Auto move method, touch screen have full machine manipulation function, can display instant and accumulated package quantity, and enable can print with the connected printer.  Setting procedure is more quick and precise; controlling panel adopt to electronics touch and control button controlling, can directly input and revise package type parameter, also can save different package specification parameter; timely supervise facility operation whole process. All the working procedure all have sensor checker, have ego diagnose function, if have any breakdown, facility will auto stop, alarm light blink, display breakdown type indication on the touch screen; common type reducer motor matching frequency transducer, whole machine limitless speed adjust, move transmission is very steadily; can as above situation change, auto control machine movement speed.

l Mechanism character: mechanism spare parts adopt to stainless steel, chroming steel and strong anti-corrode character aluminum alloy material; surface good quality spray printing, whole machine has strong anti-rust character.

l The facility accords with safe manipulation and safe operation related criterion and standard. All the lubricate part connect central place, for convenient to handle, lubricate part all ensure have no pollute on the product.

l Performance character: high automatic degree, the machine chooses PLC programmable control, electricity part all adopts to import reliable pneumatic device and super electricity controlling technology, have steadily character, easy to handle, low failure, high automatic degree ect advantage; easy to handle; the machine belong to full auto production, and can limitless speed adjust and whole line synchronization operation.

l Electricity collocation: Inovance PLC touch screen operating system, induction switch, pneumatic components, Inovance Servo motor and controller, induction switch, proximity switch are imported products, low-voltage electrical components are French Schneider, and other components are famous brands.

l Working flow: open power supply switch, cross film, choose manual film cutting, after one time film cutting success, then choose auto, machine start to operate. Product via bottle split flow facture, guiding fracture, bottle separate fracture, bottle handing film lifting up fracture, film wrapping fracture, at last via shrink tunnel, then finish whole film wrapping package working.

Technology condition and requirement:

1. Package type

2 x 3, 4 x 6, 3 x 4, 3 x 5, 5 x 6 bottles per pack

or according to client requirement

2. Applied to container type

round glass bottle or PET bottle, can, container outsider diameter is 60-90 mm

height 120-300mm.

remark: after related spare parts change, applied arrange is wider.

Accord with u company specific requirement: related bottle type package type related software have already installed, while exchange bottle type, just need to switch over at manipulation panel, easy to handle

3. Package material requirement

l Material: PE; density: 0.91~0.92 g/cm³

l Thickness: 80~90um

l max Film roller diameter: 400mm

l Film roller plate core diameter: Φ76-Φ80mm

l stretch tension: longitudinal, lateral accord with GB13022 criterion

l heating shrink ratio: longitudinal, lateral accord with GB/T13519-92criterion, 70±5%, 20±5%

l shrinkage ratio: longitudinal, lateral accord with GB/T13519-92 criterion

l fracture tension: longitudinal, lateral accord with GB13022 criterion

l thickness deviation: accord with GB6672 criterion
